Cryonaut Alpha - Regular pump

DISCONTINUED

Cryonaut no longer sells the Alpha model with the regular pump, visit our catalog to find the current model with the DRV-10 pump.

A new low-cost model will be available shortly.

Introducing the newest freeze dryer in the market, crafted to meet the requirements of both enthusiasts and professionals. Built to industrial-grade specifications and inspired by pharmaceutical-grade units, this machine is perfect for commercial use or simply for personal enjoyment at home.

 Unique Features

• WiFi Capability.
• AI Augmented drying algorithm.
• Customizable recipe feature with presets like candy modes, electronics drying, and more.
• Check Valves prevent oil return from the vacuum pump.
• Strainers and optional in-line filters stop food particles from entering the pump.
• 100% Stainless steel vacuum assembly ensures food-grade sanitation.
• Specialized KF connections designed for vacuum use ensure no leaks.
• Flexible KF25 stainless steel vacuum hose with no potential leak points.
• Dedicated repressurization valve, distinct from the drain line.
• Glass-To-Metal sealed feedthrough for wires.
• PID-controlled heating elements using industrial solid-state relays.
• Temperature probe to monitor and expedite drying.
• Thick steel trays ensure efficient drying with optimal heat distribution.



Specifications

• Process up to 10 kilos (20 pounds) on over half a square meter of drying surface
• Average drying time: 14 to 32 hours (often 24 is sufficient)
• Heat up to 65°C (150°F)
• Cold trap temperature: -45°C (-49°F)
• Tray dimensions: 19x54 cm (~7.5" x 21")
• Machine weight: ~80 KG (175 Pounds)
• Vacuum pump weight: 27 KG (60 Pounds)
• Overall dimensions: 730H x 500W x 720L mm
• (Updated: Length is 720mm plus 70mm gasket & door)

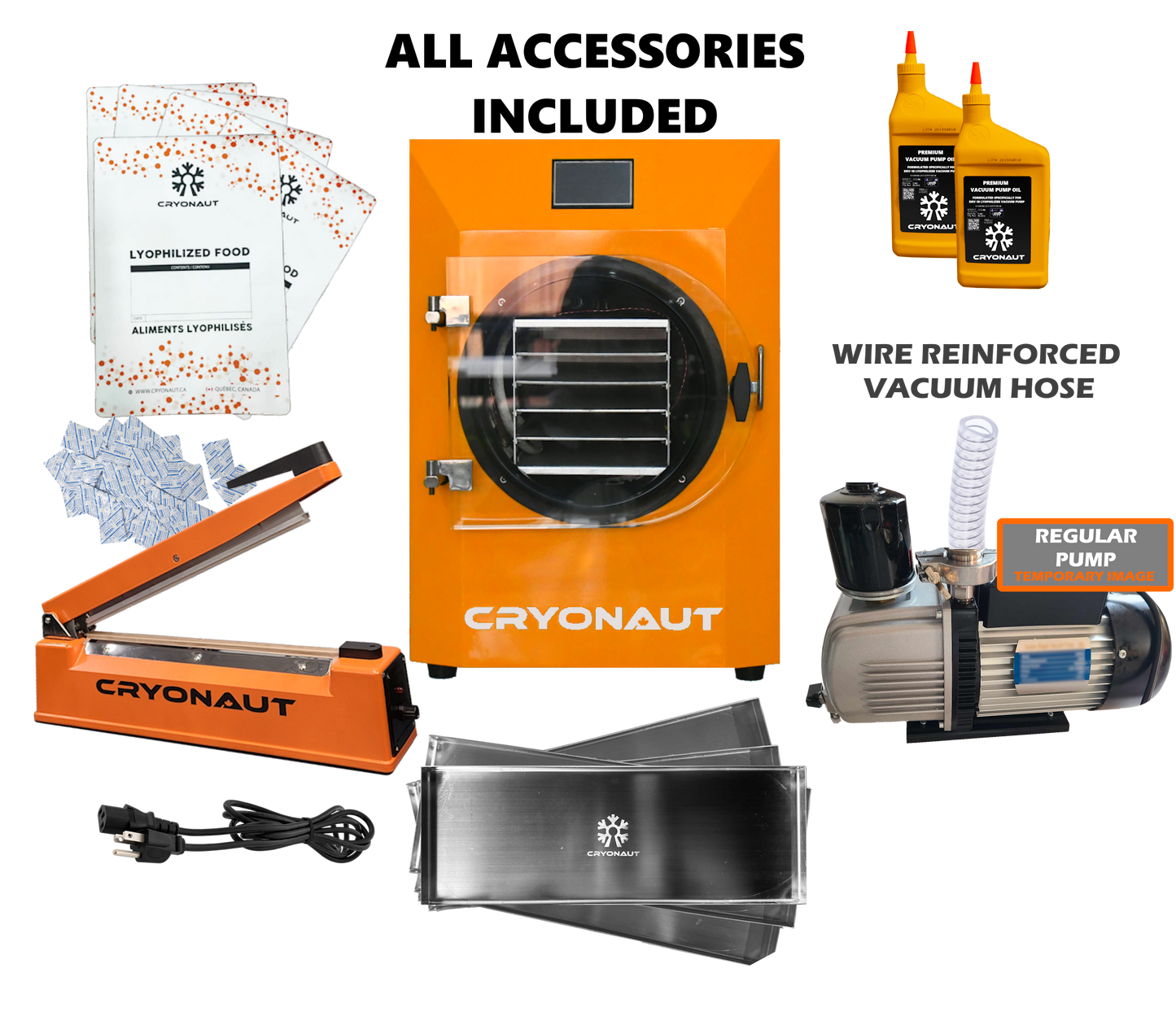

What's Included

• Vacuum Pump

• Pump oil and accessories
• Stainless steel vacuum hose
• 50 Mylar bags
• 50 Oxygen absorbers
• Impulse sealing machine
• Power cables and instruction manuals
• 5 trays


Installation Recommendations
A dedicated 20 Amp electrical outlet. No extension cords.

Do not use GFCI type outlets.
