Cryonaut ALPHA Freeze Dryer (Black)

The most sophisticatd benchtop freeze dryer on the market, crafted to meet the requirements of both enthusiasts and professionals. Built to industrial-grade specifications and inspired by pharmaceutical-grade units, this machine is perfect for commercial use or simply for personal enjoyment at home.

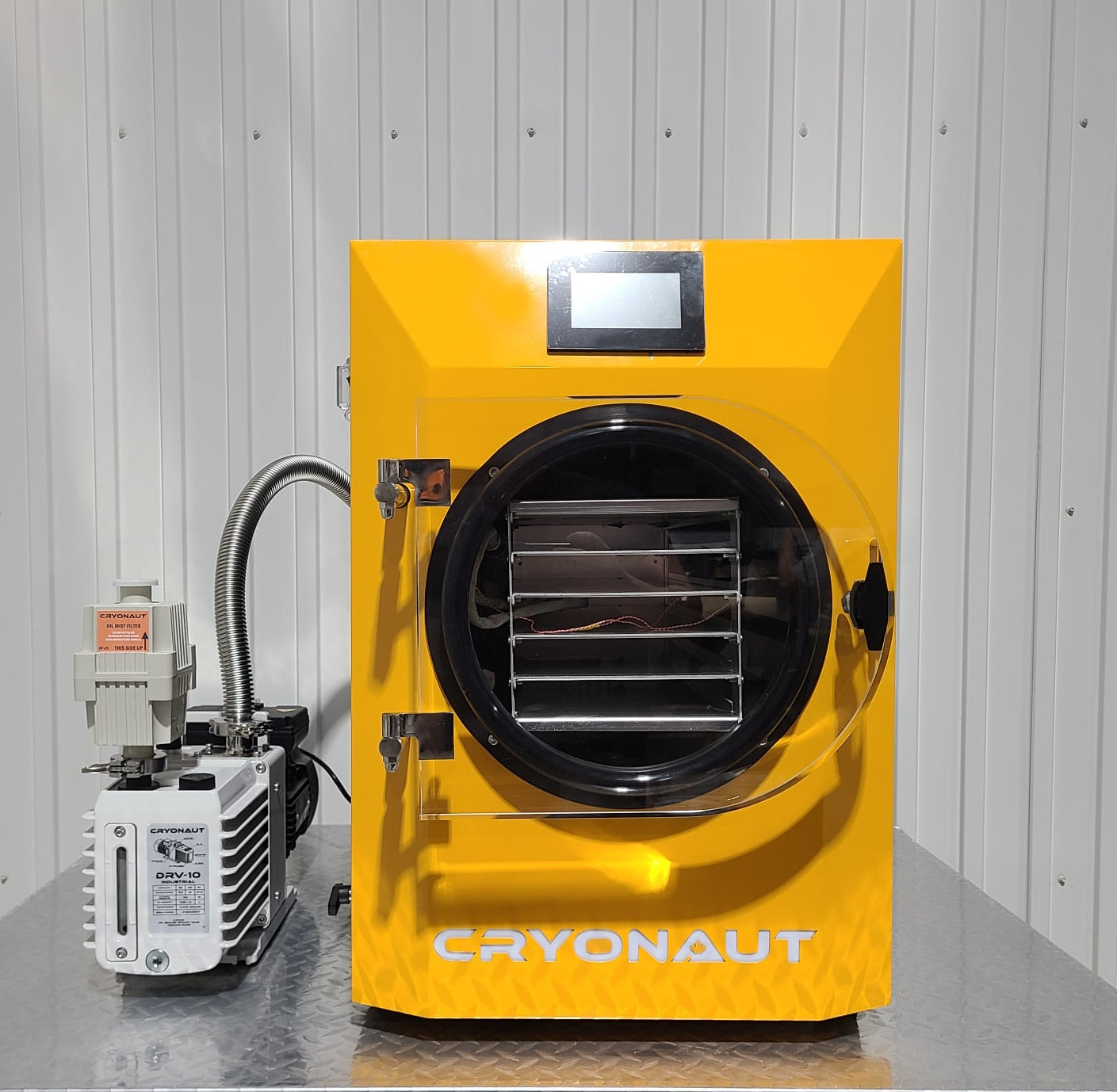

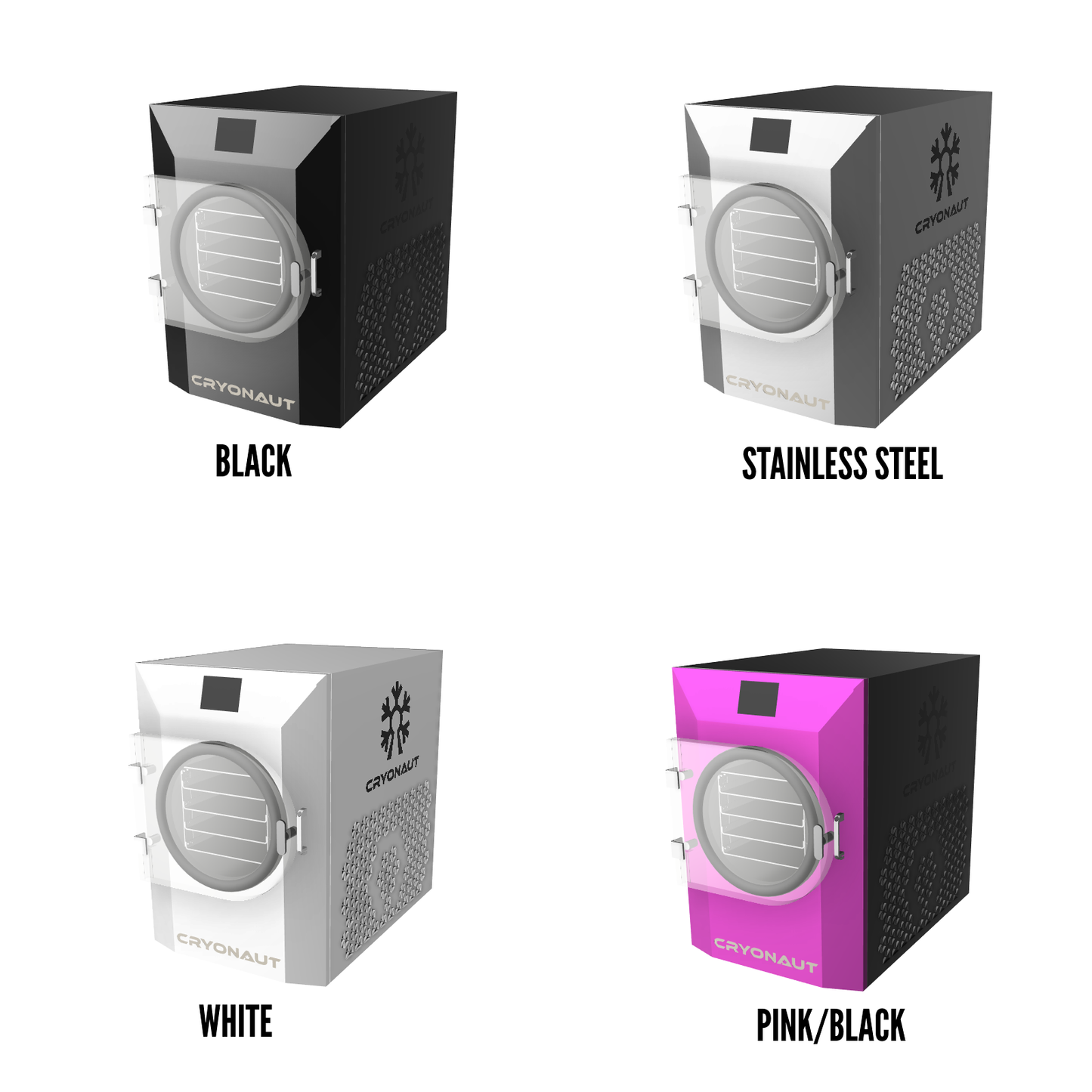

Contact us by email for the custom color option, customized colors may delay the delivery.

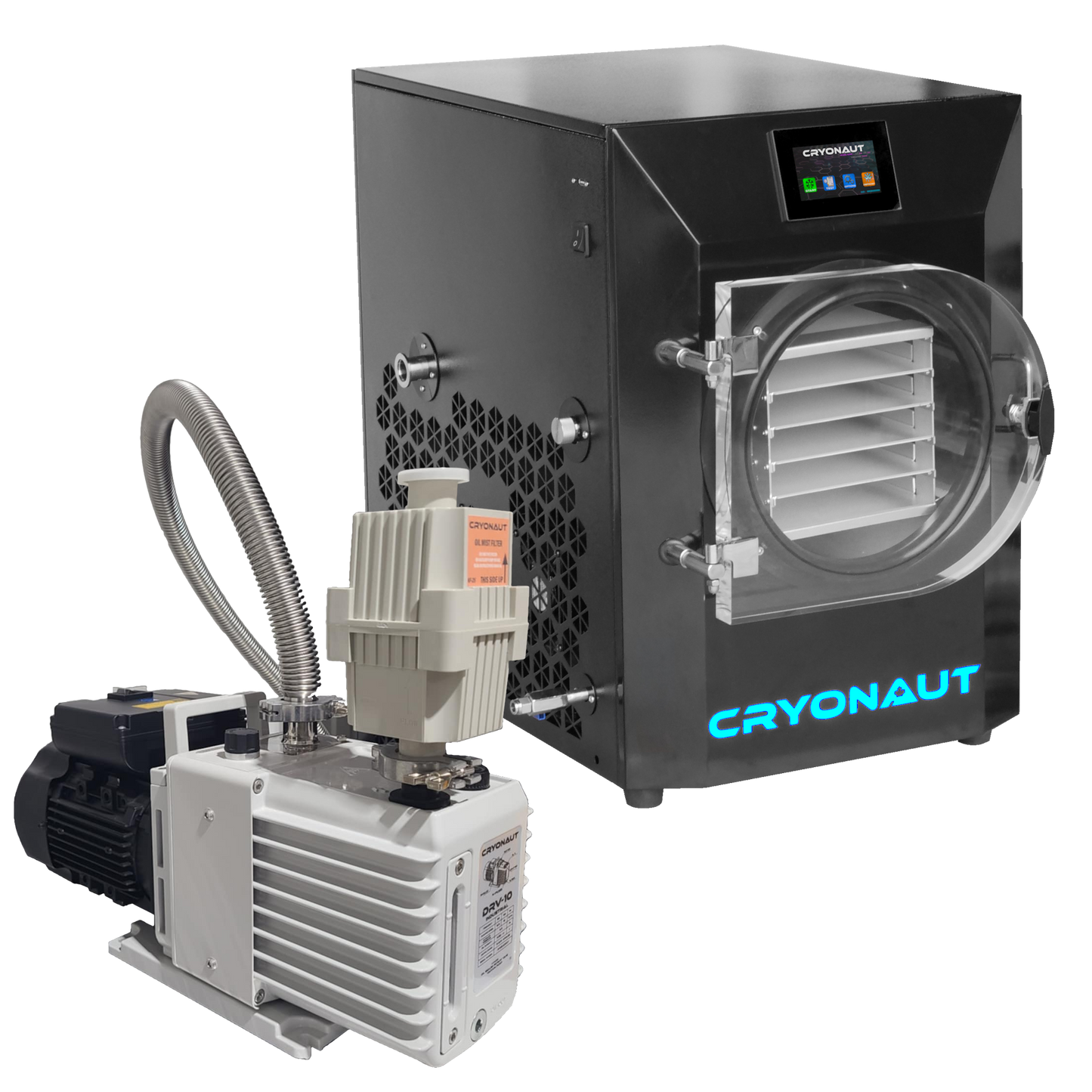

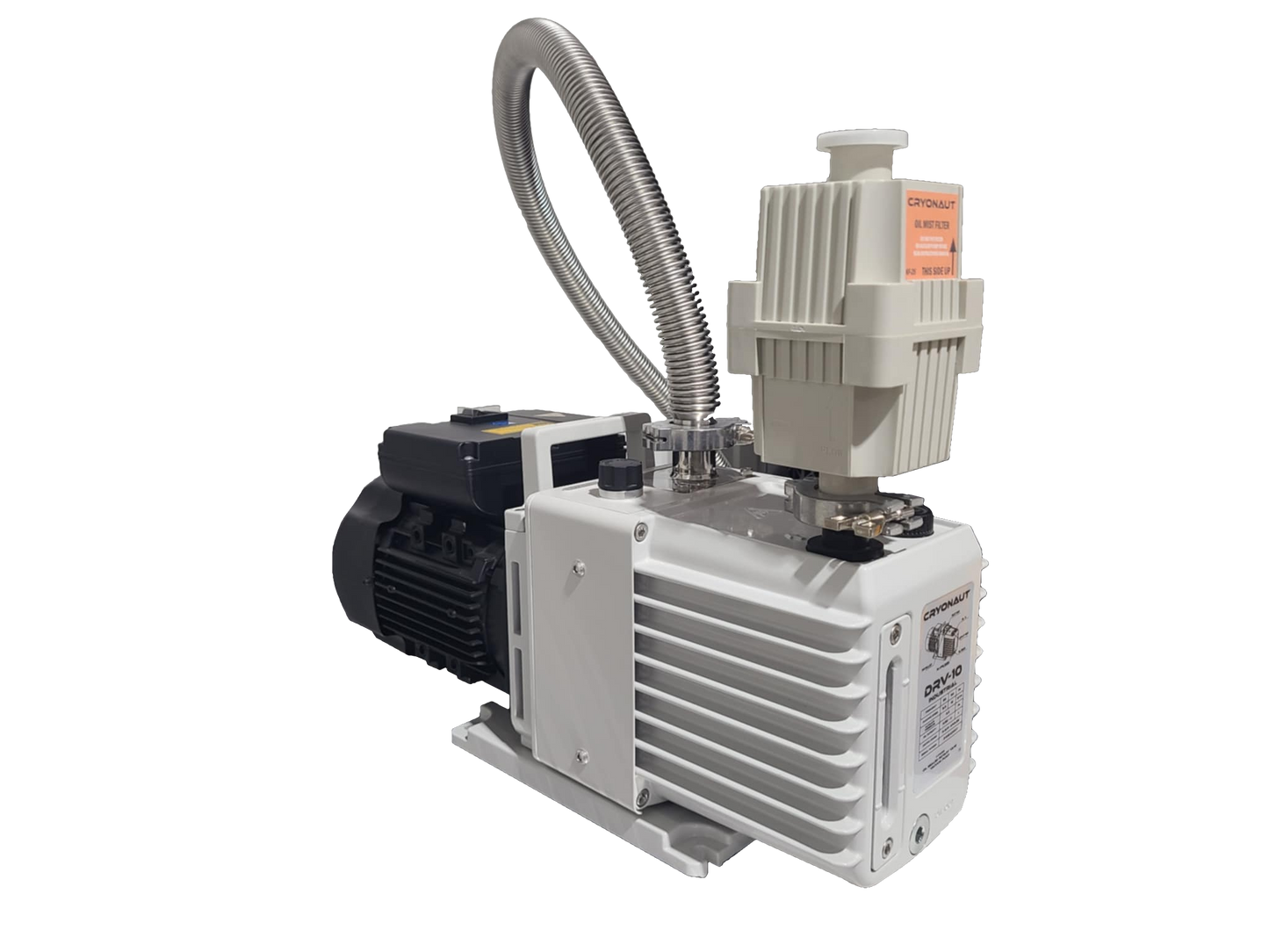

This package includes the DRV10 Industrial vacuum pump, a major leap from the typical HVAC pumps included with home use freeze dryers.

It also includes Stainless Steel KF25 bellows.

 Unique Features

• WiFi Capability.
• AI Augmented drying algorithm.
• Customizable recipe feature with presets like candy modes, electronics drying, and more.
• NSF-Approved powder coated machine shell
• NSF-Approved Aluminum anodizing treatment for tray rack.
• Check Valves prevent oil return from the vacuum pump.
• Strainers and optional in-line filters stop food particles from entering the pump.
• 100% Stainless steel vacuum assembly ensures food-grade sanitation.
• Specialized KF connections designed for vacuum use ensure no leaks.
• Flexible KF25 stainless steel vacuum hose with no potential leak points.
• Dedicated repressurization valve, distinct from the drain line.
• Glass-To-Metal sealed feedthrough for wires.
• PID-controlled heating elements using industrial solid-state relays.
• Temperature probe to monitor and expedite drying.

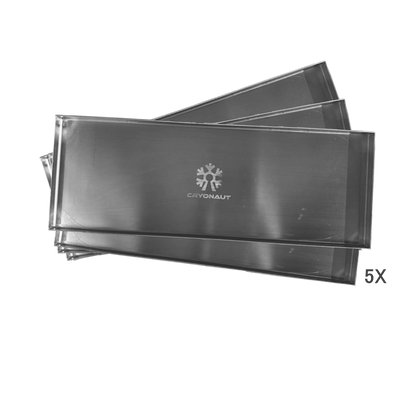

• Thick steel trays ensure efficient drying with optimal heat distribution.



Specifications

• Process up to 10 kilos (20 pounds) on over half a square meter of drying surface

• Average drying time: 14 to 32 hours (often 24 is sufficient)
• Heat up to 65°C (150°F)
• Cold trap temperature: -45°C (-49°F)
• Tray dimensions: 19x54 cm (~7.5" x 21")
• Machine weight: ~80 KG (175 Pounds)
• Vacuum pump weight: 27 KG (60 Pounds)
• Overall dimensions: 730H x 500W x 720L mm
• (Updated: Length is 720mm plus 70mm gasket & door)

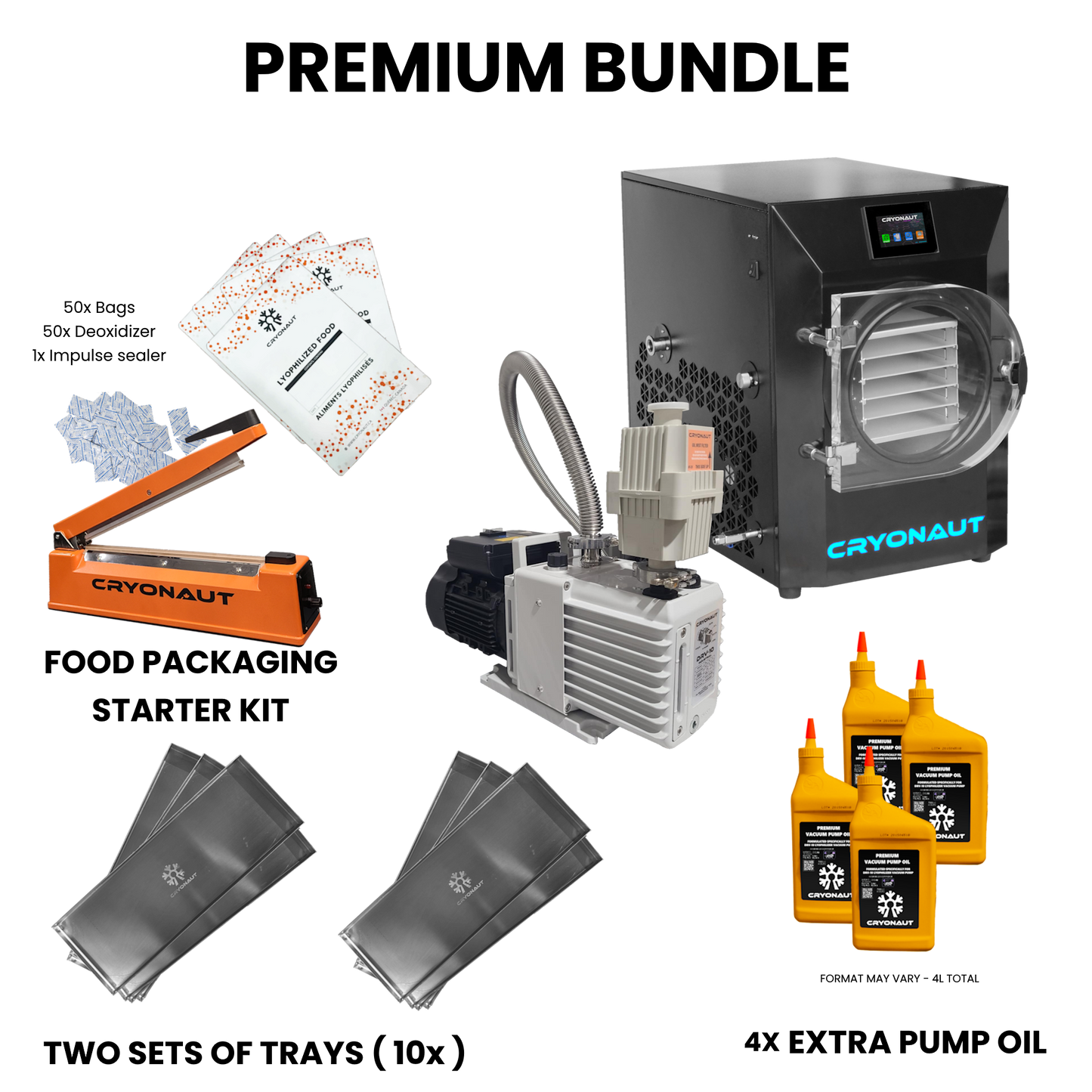

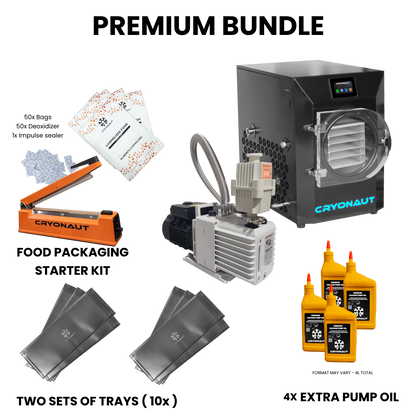

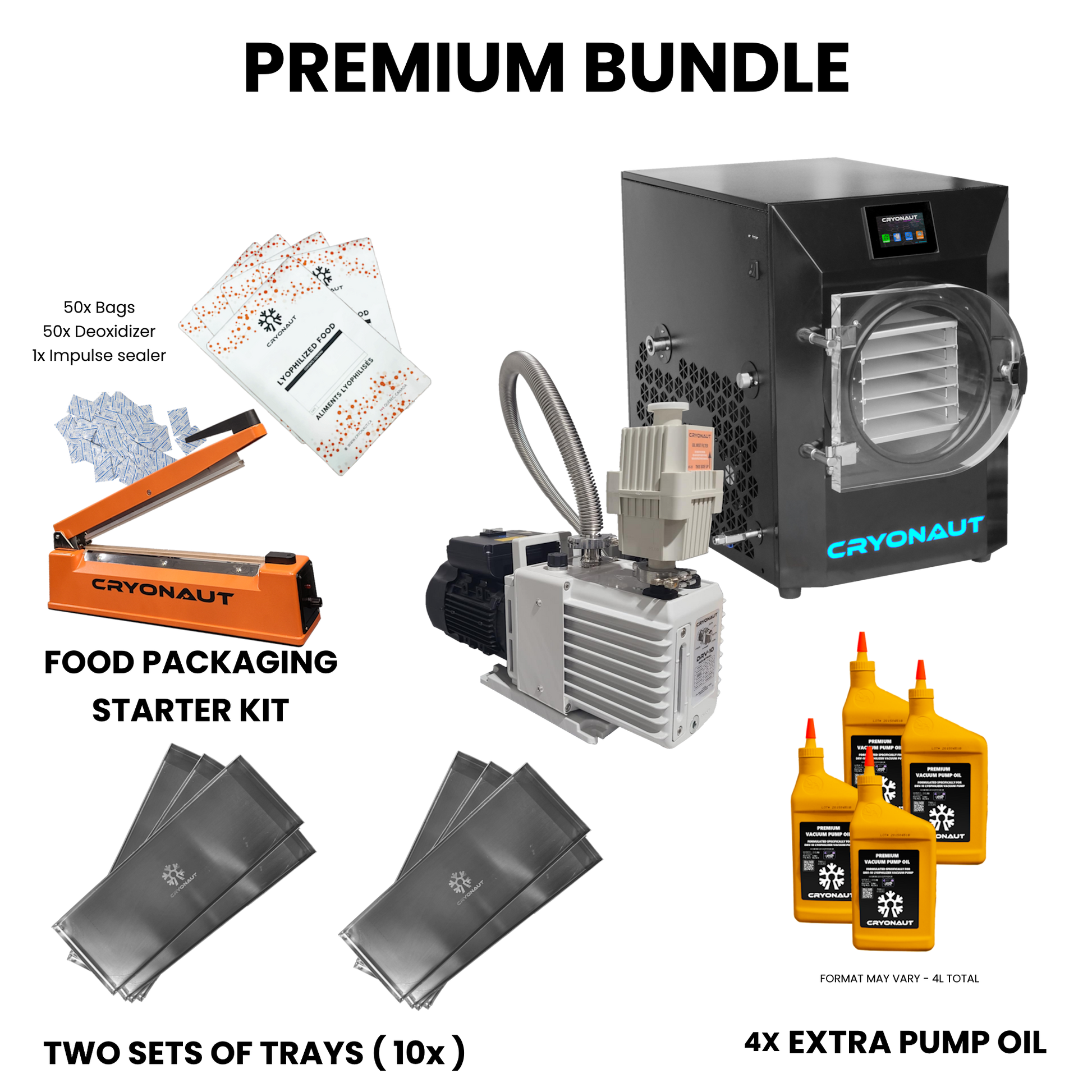

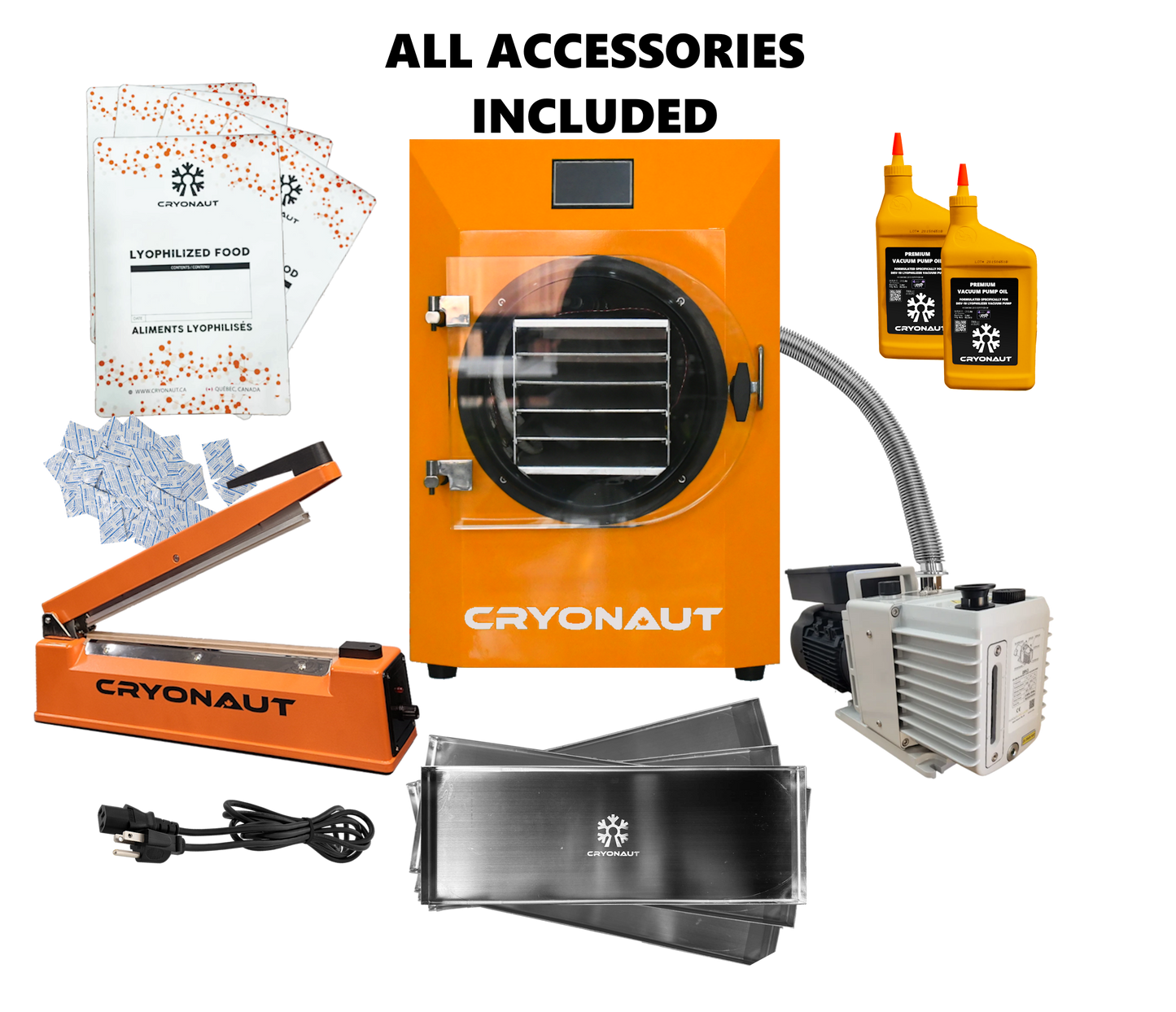

What's Included

• DRV10 Industrial Vacuum Pump

• Pump oil and accessories
• Stainless steel vacuum hose

• Power cables and instruction manuals
• 5 trays


Installation Recommendations
A dedicated 20 Amp electrical outlet, no extension cords.

Do not use GFCI type outlets.

Shipping Information

• Freeze dryer is shipped on a pallet in its own box
• Accessories, including the vacuum pump, are in a separate box
• Expected total pallet weight: ~125KG (~275 LB)
• Customers in the united states may have to pay their state's taxes upon delivery



EXPECTED SHIPPING IN 8-12 WEEKS FOR ALL ORDERS DUE TO FACTORY RE-LOCATION
